Profile Width
(mm)
Air Permeability
Class
Profile Class
TS -5358 / EN 12608
125 4 B
Wind Load Resistance Class Sound Insulation
(db)
Profile Heat Insulation Coefficient
(W / m2°K)
Window Insulation Coefficient
(W / m2°K)
C3 40 1,7 1,6

Zenia Hebeschiebe syetm is offered to the use of our customers with the addition of aluminum frame and aluminum double rail adapter used at the lower panel to the profiles of the Zenia Slide system.

Zenia Hebeschiebe syetm is offered to the use of our customers with the addition of aluminum frame and aluminum double rail adapter used at the lower panel to the profiles of the Zenia Slide system.

Hebeschiebe systems, which can be used comfortably in the details of the building such as garden, pool and balcony outlets with large and high openings, bring you the ease of use and comfort of the slider system.  The insulation advantage of the Zenia Hebeschiebe system adds value and comfort to your living spaces.

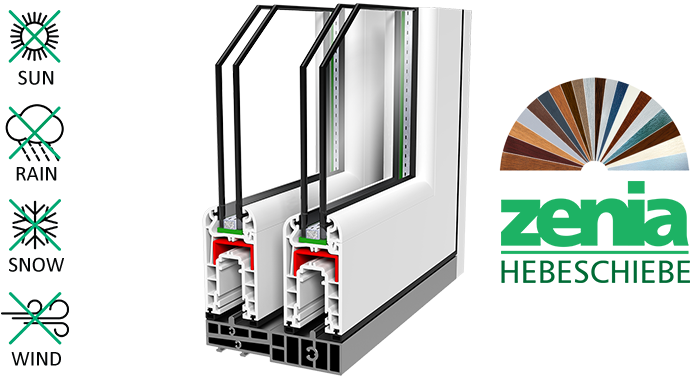

The gasket interlock system used in the Zenia Hebeschiebe system provides ease of use and insulation values ​​at the highest level thanks to the EPDM gaskets used at all points, the upper insulation profile and the special profiles preventing the sash shakiness.

  • Perfect insulation with EPDM gasket at all points
  • High rain and sound insulation
  • 200 kg load bearing capacity for each sash
  • Ease of use and installation
  • Easy sliding with 3 cm sill height
  • Aesthetic look with 125 mm frame – 50 mm sash width
  • Thanks to a special locking system, sash can be locked at a desired position
  • 21 different color options
  • The advantage of being available as ready-made joinery
  • Sashes can be in any desired number
  • Any sash/sashes can be movable
  • Cost advantage compared to all insulated sliding systems and hebeschiebe espagnolette
  • The Zenia system can be transformed into a Hebeschiebe system with the use of an aluminum lower frame. Thus, the load bearing capacity of each sash is 300 kg.

Window Pattern Options

Cedar
Walnut
Golden Oak
Oak
Mahogany
Grey
Anthracite
Anteak
Aluminium Brush Effect
Winchester
Silver Brush Effect
Steel Blue
White
Macoré
Trompet
Dark Oak
Dark Green
Cream White
Eiche Rustical
Silver D (Silver Grey)
Ash
